Hi-Power stereo amplifier with protection 2x1200w
    Hi-Power stereo amplifier with protection 2x1200w

Hi-Power stereo amplifier with protection 2x1200w

zł388.16
Tax excluded

Product Description: This amplifier plate comes from a mature circuit and

Quantity

  Security Policy

Click for details

  Delivery policy

Click for details

  Returns

Click for details

Guarantee safe & secure checkout

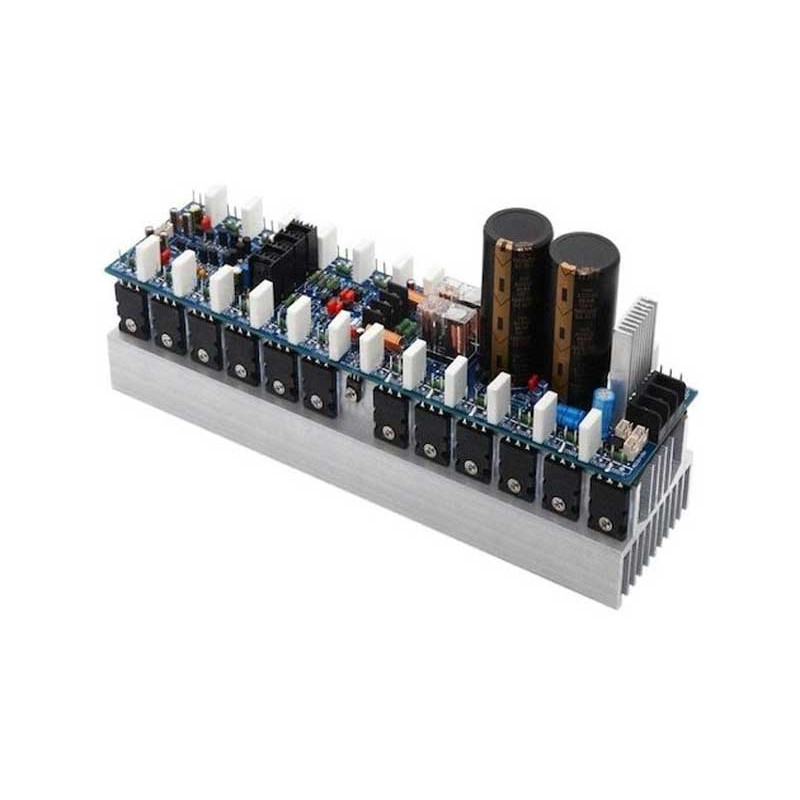

Product Description: This amplifier plate comes from a mature and stable circuit, with double differential entry and improved input signal processing. The training floor uses a pair of transistors 1930 and 5171 plus 5200 and 1943, followed by 22 transistors for leaving the power stage.

The output power reaches up to 1200W + 1200W, offering a strong performance. The circuit design uses DC feedback, excellent signal analysis and a deep bass.

The amplifier plate is equipped with a complete protective circuit: delay in starting, voltage protection in the middle, overcurrent protection, high temperature protection, as well as interface for cooling fan.

It is recommended to use a double AC TOROIDAL transformer 35-65V (minimum 400W). The protective circuit requires a separate power supply (AC 12-16V, with separate winding-cannot be shared with other circuits). The 400W transformer is just one example - for high power output a higher capacity transformer is required.

Technical specifications:

  • weight: 1.95 kg

  • output power: 1200W + 1200W at 4 ohms / 600W + 600W at 8 ohms

  • frequency response: 20Hz - 20kHz

  • harmonic distortion: 0.01%

  • amplification factor: 25x

  • Main power voltage: Dual AC 24-65V (the plate includes filtration and recovery circuits)

  • Protection circuit: Simple AC 12-16V (with separate, unpaved power)
