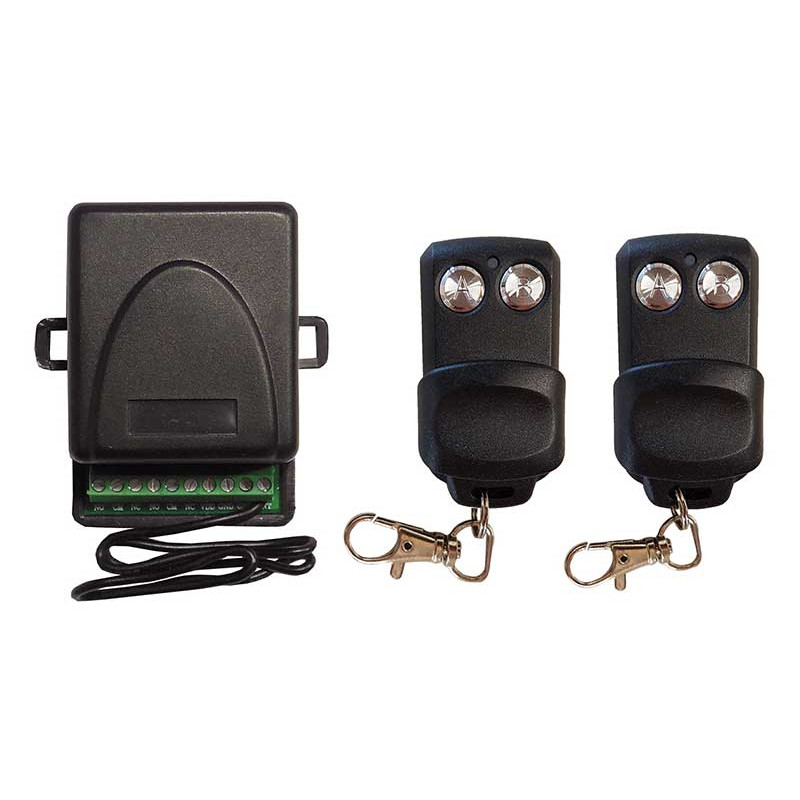

Indoor automation kit receiver + 2 remotes Superior

Kit Automation Gates of Access, Barriers, etc for external use.

two programmable independent channels according to needs.

two remote controls, receiver and antenna included. Batteries included.

configuration module and diagram are included in the package.

for installation only call for authorized persons.

weight: 170 g

Dimensions: 10.5 x 7 x 3.5 cm

power supply: 12/24V - AC/DC

Relee: 12A – 14Vdc – 7A

operation frequency: 433.92 MHz

programming module:

Click the button on the receiver P1:

only once to schedule the CH1 channel in monostable mode

twice to schedule the CH2 channel in monostable mode

three times to schedule the CH1 channel in bistable mode

four times to schedule the CH2 channel in bistable mode

keep your remote control button that you want to be used pressed until the LED on the receiver blinks

delete the buttons on the learned remote control:

Press the P2 button 2 seconds and then release it. The LED will light up. Then press the remote control button you want to be erased.

Press the P2 button 8 seconds until the LED lights up. Then all remote control buttons were erased from memory.
