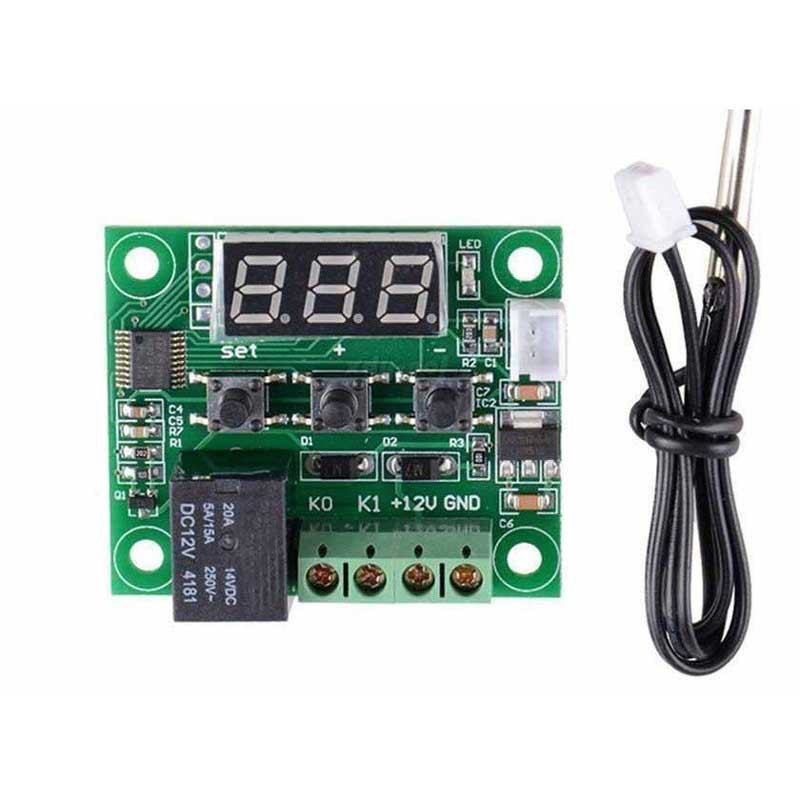

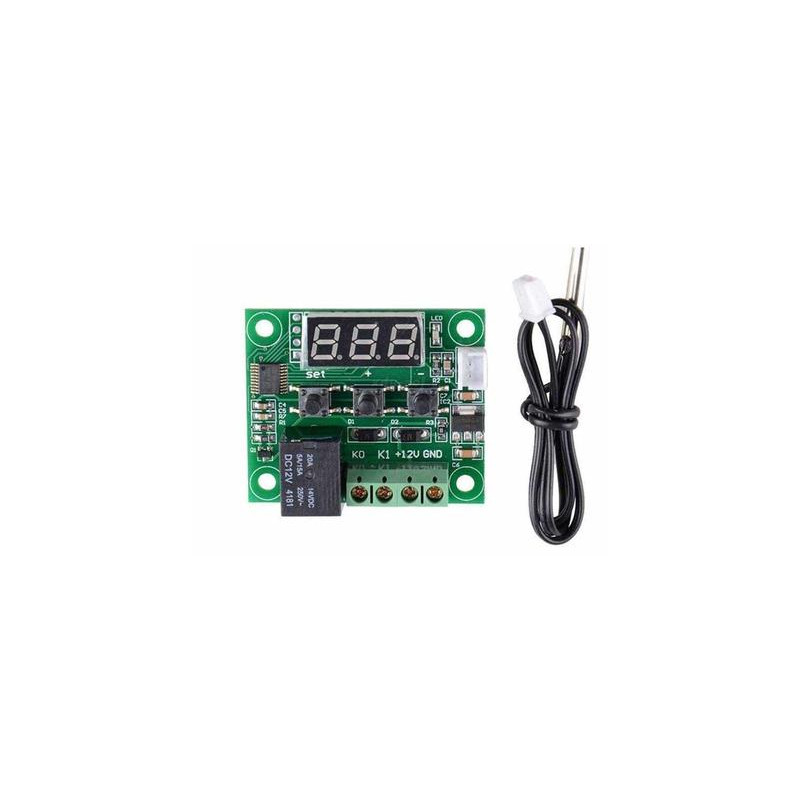

Thermostat module W1209 12V with sensor

With this module you can control most types of electrical devices depending on the temperature detected by the NTC temperature sensor, which has a high accuracy. 3 tactile switches allow the configuration of various parameters. The relay on board can pass up to 240V AC at 5A or 14V dc at 10A. The current temperature is displayed in degrees Celsius by the LED display.

Technical features:

food voltage: 12V dc

temperature reading interval: -50 ~ 110 degrees Celsius

Resolution: 0.1 degrees for temperatures between -9.9 ~ 99.9 degrees Celsius

Reading Re -Father Rate: 0.5 sec.

consumption: max 65 mi

Dimensions: 48mm x 40mm x 14mm
