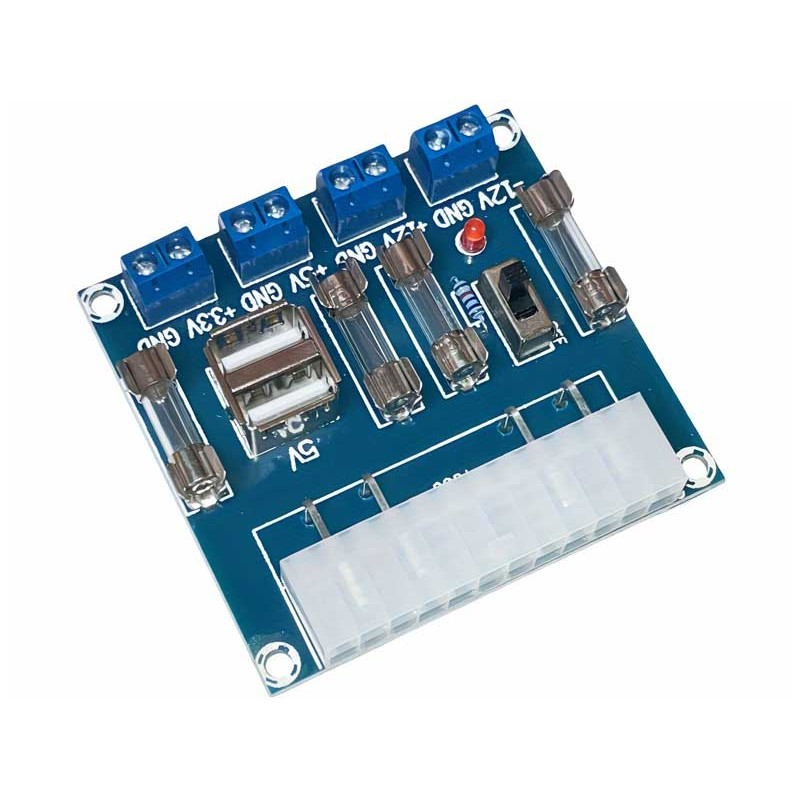

ATX 24-pin to terminal adapter module with USB

A Pinout module of ADX power supply that allows the use of computer source as a source of computer source. stable power.

it has a symmetric power supply of effective 12v with additional cables for 5v and 3.3v and two USB ports with 5V.

There is a common power switch on the plate, a power led safety.

The module is compatible with sheets with 24 and 20 pins-20-pine sheet is connected from 20 pins. Points Marking on PCB.

Specifications Technical:

Compatible with Food sources ATX and BTX (some) with 24 and 20 sockets Pini.

connectors: +12v, -12v, +5v, +3.3v, 2xusb-a-a-a-a-a-a-a-

Fuses

LED status

switch on/off
