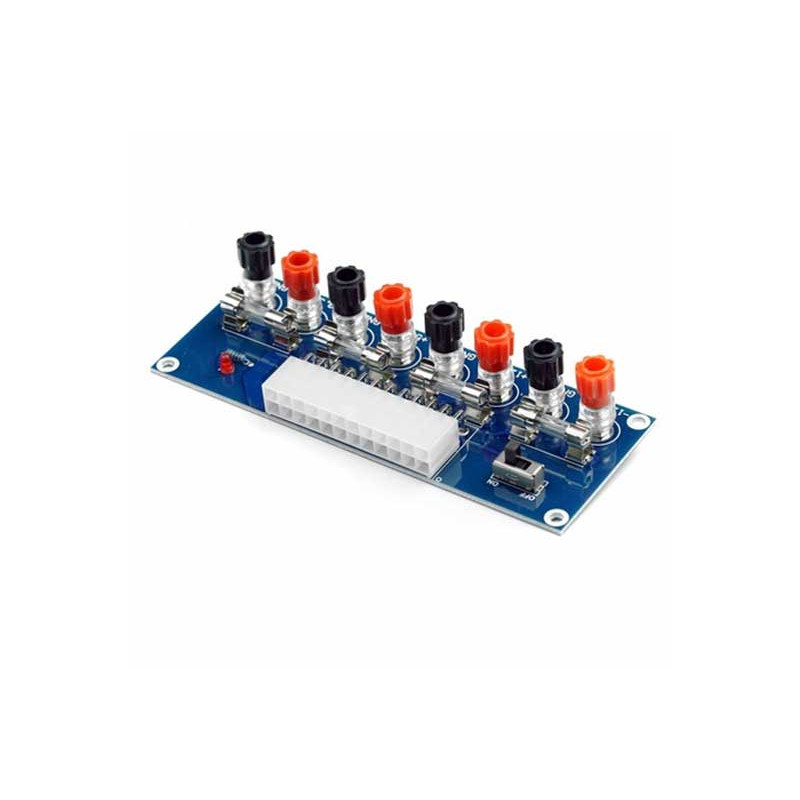

ATX power adapter module XH-M229 12V 24-pin

Description:

ATX Desktop PC module, with 24 -pin jack input, tightening terminals on the screw, each provided with dedicated glass and on/off button on the plate.

are available 4 power groups of two pins (positive and negative), with different values.

LED feed state present on PCB.

Technical specifications:

Compatibility: ATX and partially with BTX

Pini number: 24

switch: yes, turned on/off

Tension groups: 4 sets

Dimensions: 128 x 48mm

groups:

1: -12v, gnd

2: +12v, Gnd

3: +5v, gnd

4: +3.3v, gnd
