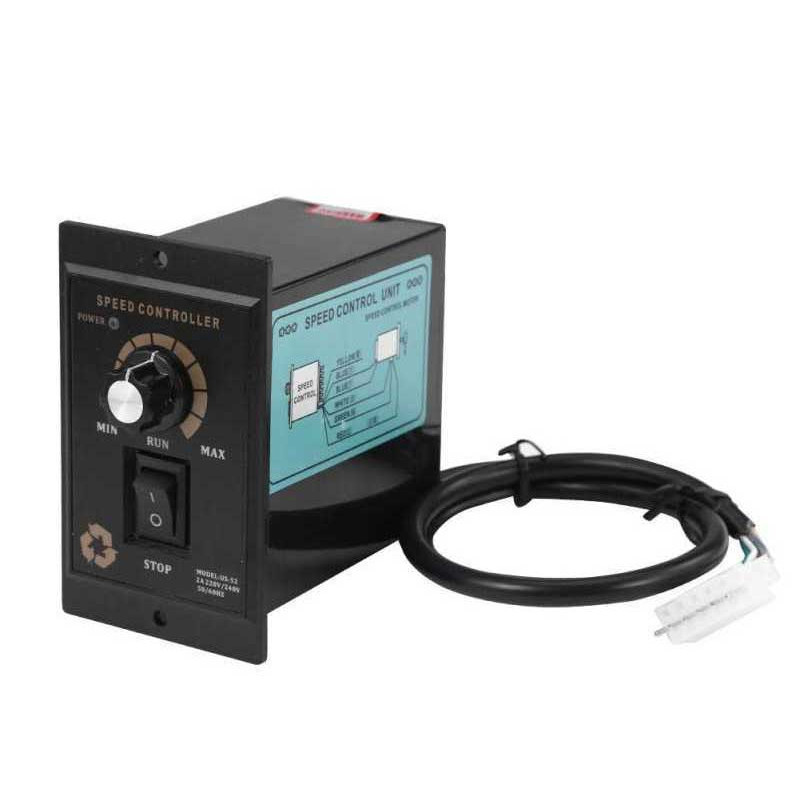

Motor speed controller 400W 220V

power: AC220V 50/60Hz

Nominal power: 400 wati

environment temperature: -10 ~+50 ℃;

relative humidity: <90%;

speed adjustment interval: 90-1400R/min 50 Hz, 90-1700R/min 60 Hz

weight: 300 grams

• This engine speed regulator is suitable for the AC220V 50/60 Hz engine.

• speed adjustment interval 90-1400R/min 50 Hz, 90-1700R/min 60 Hz

• Suitable for packing, printing, food, electronic products, tools, medical equipment, speed control devices

• The controller uses high quality electronic circuits and integrated components to achieve durability.

• It has small dimensions, high precision, wide range of speed control and long life.

mounting:

1. Turn off the power and connect it according to the wiring scheme to make sure the connection is correct.

2. Position the controller well and set the speed to the lowest "0" to avoid the high current suddenly and the permanent damage when starting the power;

3. Then turn the power and adjust the speed regulator in the desired position. Please stop the power when no need;

4. The regulator is connected to the engine. If the couple or speed do not meet the requirements, please adjust the finesse potentiometer on the product side

5. To change the engine work direction, simply replace "CCW" and "CW" on the back of the controller.

6. Select the short and CW connection, then the engine rotates clockwise.

7. Select the short com connection and CCW connection, then turn the engine in reverse clockwise.
