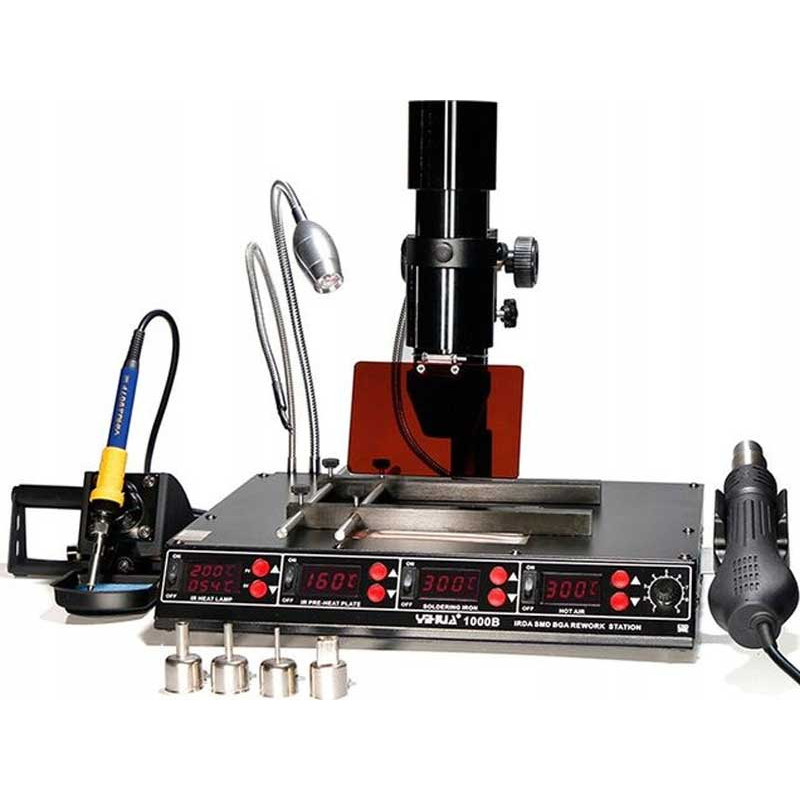

Infrared BGA rework station

is a 4 -in -1 system dedicated to repairs and maintenance of electronic boards. It combines in a single equipment a soldering station, a hot air station, an infrared preheating and an external temperature sensor. Is suitable for precise works on SMD, BGA, QFP, PLCC and many more components.

integrated functions:

• gluing station with adjustable temperature

• hot air station for rework sensitive components

• preheating with infrared for PCB plate protection

• external temperature sensor with display in ° C/° F

• digital display and electronic temperature control

• LED light for work area

• adjustable support for PCB plates

Technical specifications:

• Total Power: About 1000W

• hot air temperature range: 100 ° C - 480 ° C

• Temperature range soldering hammer: 200 ° C - 480 ° C

• infrared preheating power: 200W

• air flow: adjustable (maximum approx. 120 l/min)

• switch between ° C and ° F

• power supply: 220V / 50Hz

• Dimensions: About 255 x 188 x 125 mm

• weight: about 4.5 kg

applications:

• Motherbox repairs, phones, laptops, industrial equipment

• Reballing and Rework works on BGA and SMD components

• electronic laboratories, prototypes, service workshops
