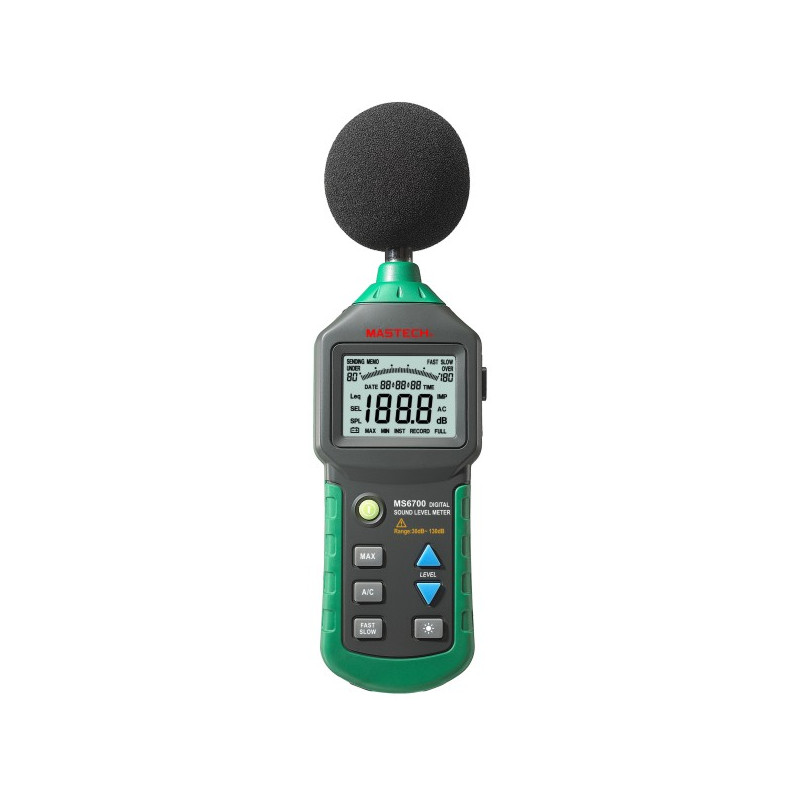

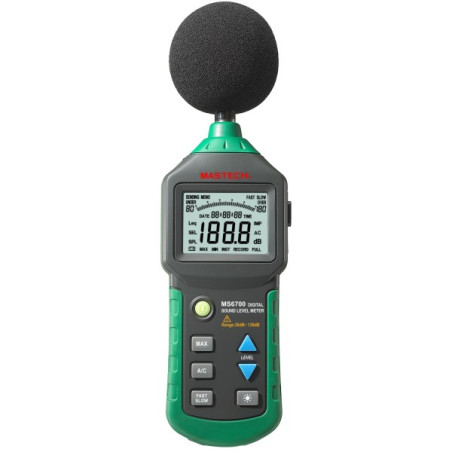

Sound level meter MS6700 Mastech

lei265.83
Tax excluded
Quantity

  Security Policy

Click for details

  Delivery policy

Click for details

  Returns

Click for details

Guarantee safe & secure checkout

  • Accuracy: +-1.5db
  • Response Frequency: 31.5Hz-8kHz
  • Dynamic Range: 50db
  • Frequency Weighting: A \ C
  • Time Weighting: Fast 125ms, Slow 1sec
  • microphone: Electro condenser microphone
  • Digital Display: 4 Digitals, Resolution 0.1db, Sampling Rate 2 Times/S
  • Analog Bar Display: Each Analog Bar is 1 DB, Sampling Rate 2 Times/S
  • Measurement Ranges: 30-80dB, 40-90dB, 50-100dB, 60-110dB, 70-120dB, 80-130DB, Total of 6 ranges
  • Auto -range: Micro-Computer Can the Best Measurement Ranges
  • over range indicator: under (less than range) and over (over range)
  • AC signal output: 0.707 vrms at fs (auto -range mode isn't included) output impedance approx. 600Ω
  • DC Signal Output: 10mv/DB Output Imdance Approx.100ω
  • Power Supply: Four LR03 AM4 1.5V Size AAA ALKALINE CELLS
  • Power Life: About> 35Hrs (Alkaline Cells) Cintinuous Operation
  • AC ADAPTER: Voltage 9VDC
    Voltage Ripple <100mvpp
    Supply Current> 100madc
    socket Pin Ground
    Casing Positive
    External Diameter 3.5mm
  • operating temperature: 0 ℃ to 40 ℃
  • Operating Humidity: 10 ~ 80%Rh
  • storage temperature: -10 ℃ to 60 ℃
  • storage humidity: 10 to 70%rh
  • Dimensions: 245 (L) x80 (W) x35 (h) mm
  • Weight: Approx. 350g (including battery)
  • accessso ries:::: Earphone Plug, Manual Operation, Battery, Windscreen.
  • Certificates: EC (EMC) ROHS
  • Display: 2000 counts
  • Date Logging: 16000 Records
  • Auto Ranging
  • Auto Power off
  • AC Singal Output: 0.707 VRMS AT FS (Auto -range mode isn't included) output impedance approx. 600Ω
  • DC Singal Output: 10mv/DB OUTPUT IMPANCE APPROX. 100Ω
  • AC adapter
    -Voltage 9vdc
    -Voltage Ripple <100m VPP
    -Supple Current> 100m ADC
    -Socket: PIN Ground
    -CASING POSITIVE
    -External Diameter 3.5mm
  • fast
  • Low
  • a Weighting
  • B Weighting
  • data and time display
  • max
  • Data Hold
  • Display Backlight
  • Low Battery Display
  • Analog Bar Indication
  • Over Range Indication
  • Resolution 0.1db
  • Accuracy +-1.5db
  • Sample Rate 2/SEC
