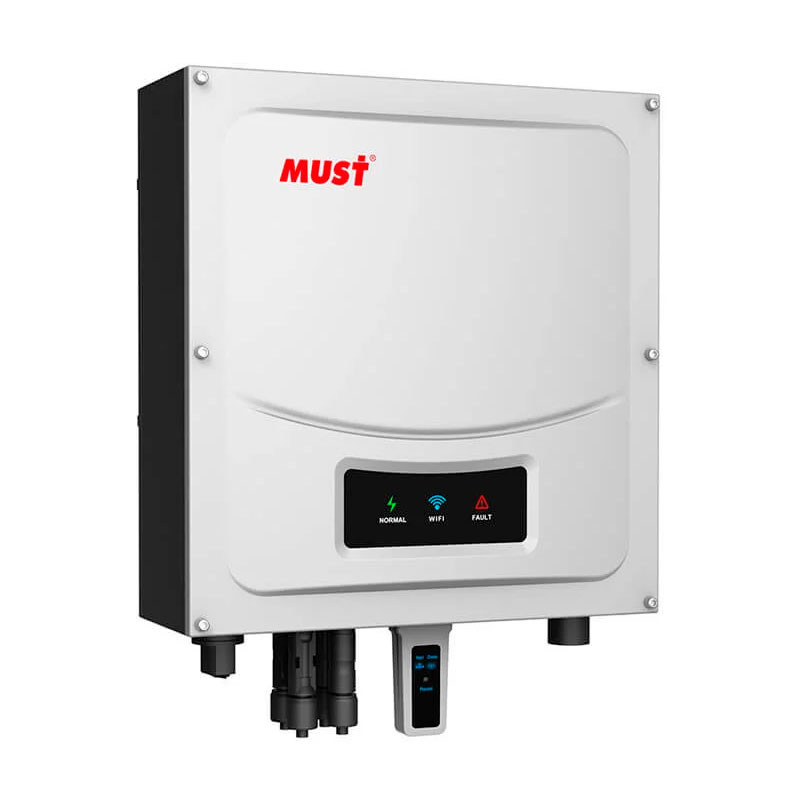

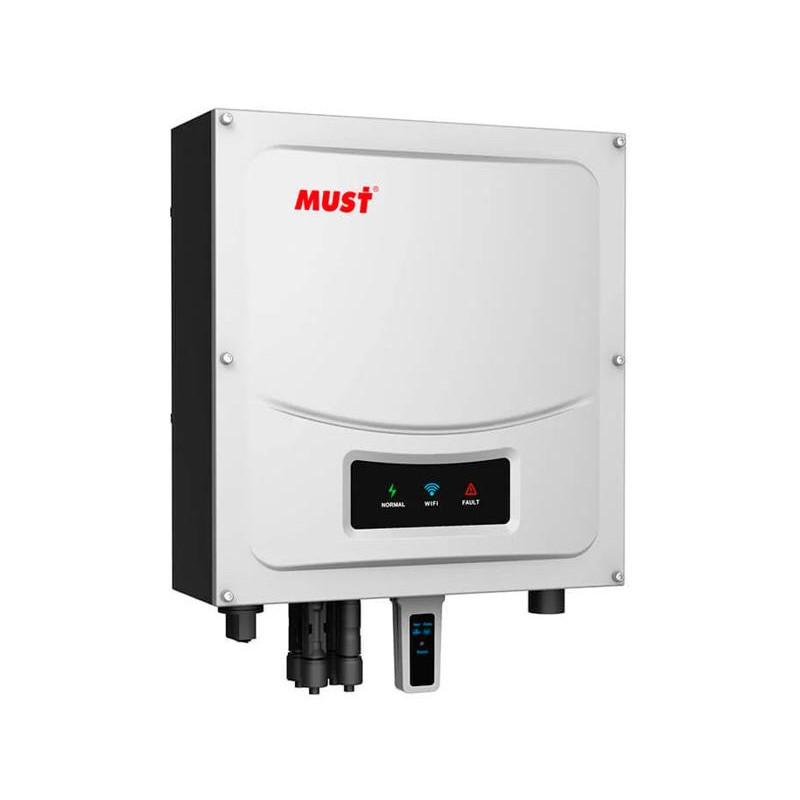

On-grid solar inverter 6Kw USB, WIFI, Alien

model pH50-6000m

rated power (w) 6000

pv input (dc)

maximum recommended DC Power (W) 7000

nominal dc operationing voltage (v) 360

maximum DC Voltage (V) 550

Start Voltage (V) 100

MPPT Voltage Range (V) 80 ~ 550

maximum input current (a) 15/15

no.of MPP tracker 2

strings per mpp tracker 1

grid output (ac)

nominal ac Output Power (W) 6000

Maximum AC Output Power (VA) 6000

nominal output voltage (v); rande (v) 220/230 / 240; 180-280

AC grid frequency (Hz); Range (Hz) 50/60; 45 ~ 55/55-65

nominal output current (a) 26.1

maximum output current (a) 27.3

Total Harmonic Distortion I (Thdi) ? 3%@Full Load & Thdv <1%

power factor at rated power 1

Displacement Power Factor 0.8leading? 0.8lagging

AC Connection single phase

efficiecy

Maximum efficiency 97.4%

Euro-efficiency 97.0%

mppt efficiency 99.5%

self-consumption night (w)

protection devices

dc reverse polary protection yes

dc switch rating for each mppt yes

output over current protection yes

output overvoltage protection-recarnist yes

Ground Fault Monitoring Yes

grid monitoring yes

Integrated all-pole sensitive Leakage Current yes

Dimension (W/H/D) (mm) 355*412*201

net weight (kg) 16.5

interface

dc Connection h4/mc4

AC Connection Connector

Display LED

Communication interfaces wi-fi / usb / gprs

environment

ingress protection rating ip65

humidity 0-100%

operationing temperature range -25? ~+60? With deishing above 45?

cooling concept natural

Noise Issue (Typical) [DB] ≤25

Altitude <4000m

others

topology transformerless
