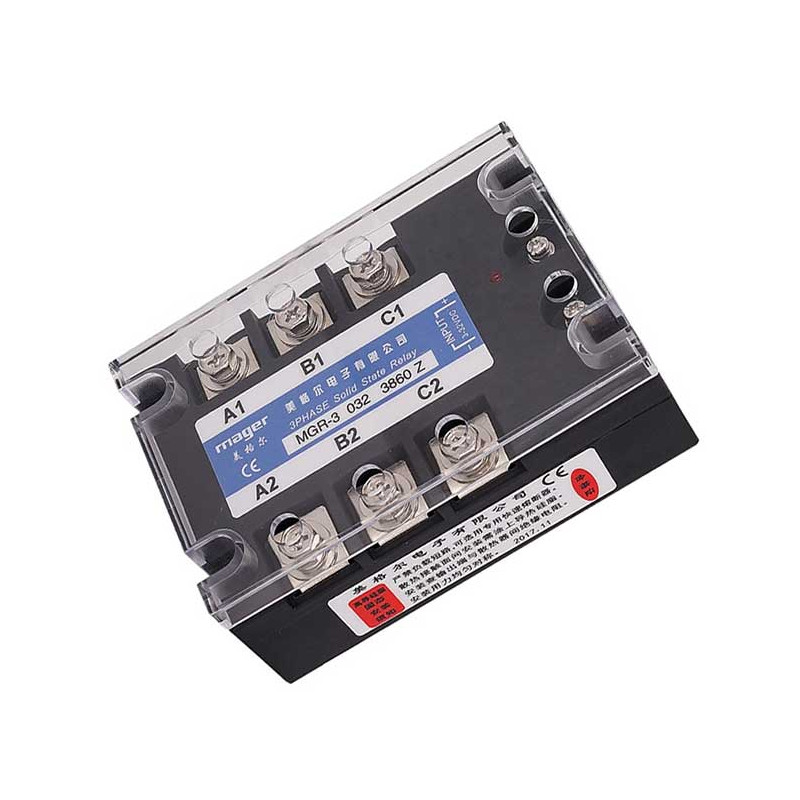

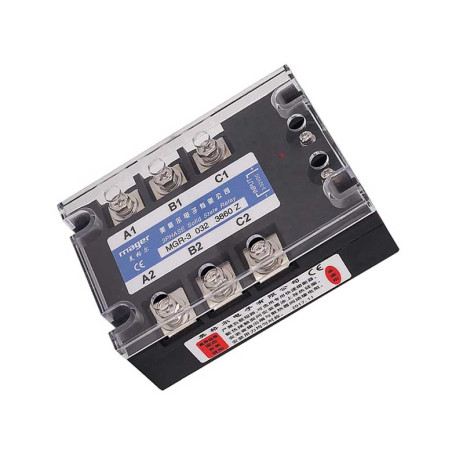

Solid State 60A three-phase relay 3860Z

Features:

solid state (SSR) Non-Contact Switch Electronic Abbreviations, The Main Characteristics of Tiny Control input Signal, The Direct Drive High Current Load. Product is used Widely, Advantges: Long Life, Non-Contact, No Spark, No Noise, No Electromagnetic Interference, Fast Switching Speed, Strong Anti-Interference, Relable Operation, and Small Size, Resistant to Vibration, Explosion-Proof, Anti-Corrrosion, Can Compatible With Ttl, dtl, htl integrated circuit.

Type: SSR MGR-3 3860z
control: D c-controlled ac
load: 60a > style = "color:#333333; Font-Family: Arial, Helvetica, 'Sans-Senif'; Font-Size: 12px;" /> load voltage: 380VAC
control voltage: 3-32vdc
Curtain control: 10-68ma
power off time: <= <= <= <= <= 12ms
dielectric pressures: 2500VAC
Ambient temperatures: -30 ~ ~ ~ 75c
installation: Bolted Working instructions: LED
