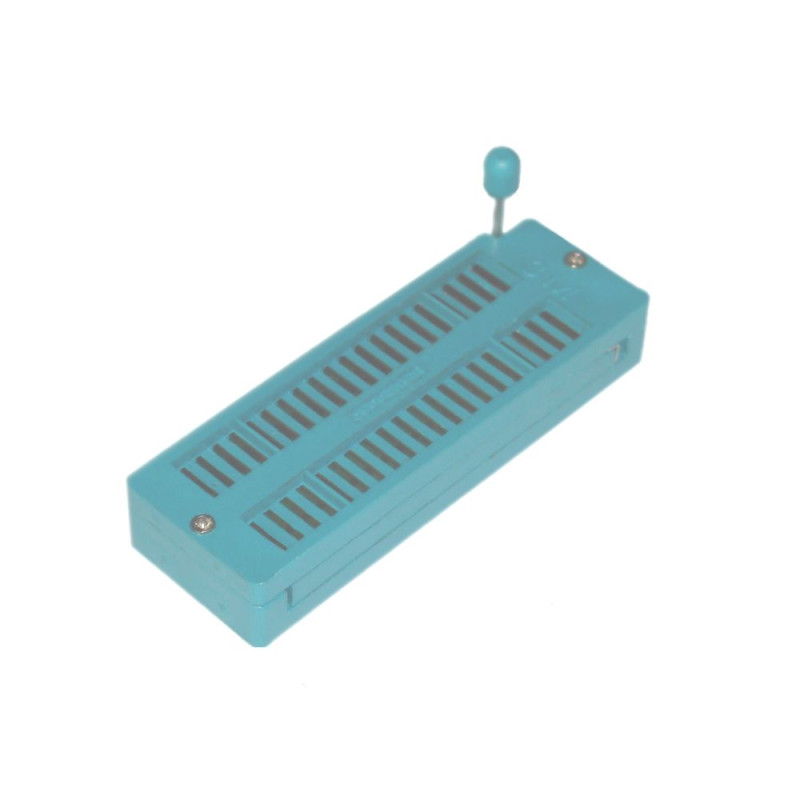

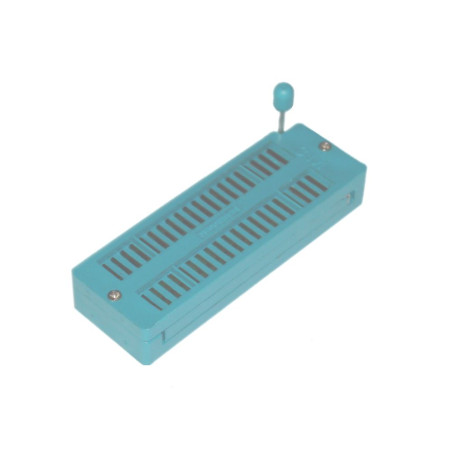

ZIF DIP socket 40-pin

DIUBLE SOCKET 2.54mm (0.100 '')
Material: Housing: 30% Glass Filled PBT UL94V-0
Contacts: Phosphor Brone
Plating (Gold Plated): 3u '' over 50u '' nickel
(Tin Plated): 100u '' Over 50u '' Nickel
Electrical Characteristics: Current rating: 1 AMP
Resistance islander: 5000mΩ min, at DC 500V
Contact Resistance: 20mω max, at DC 100MA
Operating Temperature: -55 ° C ~+105 ° C
Features: for dips with.100 '' Lead spacing.
Lever Actuated Zero Insertion Force Mechanism.
Socket Easily Disaaembles for Repairability.
Socket Contact Point of.110 '' Bellow Top Surface of Socket.
