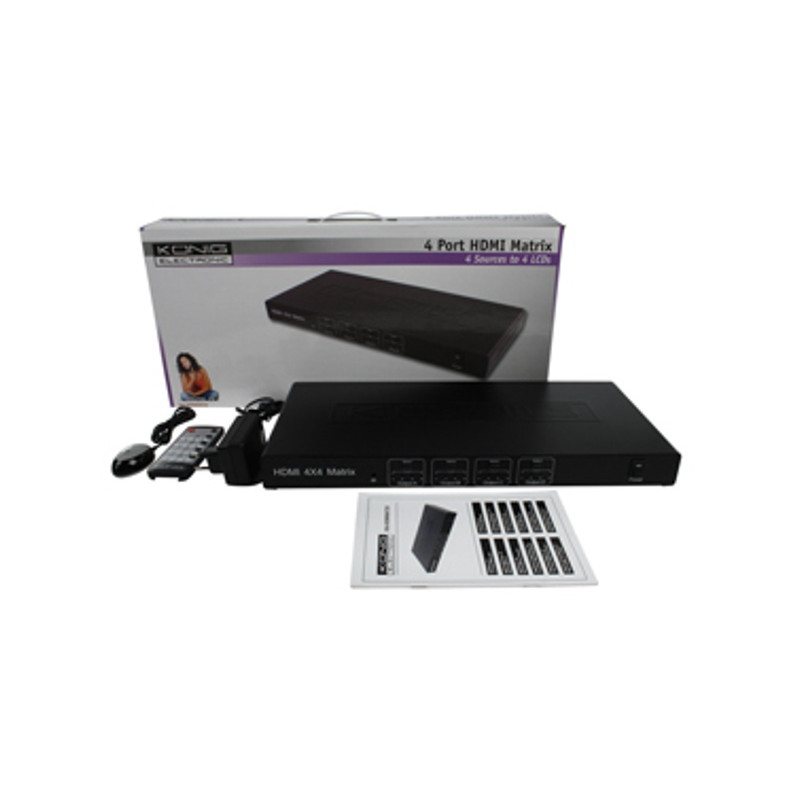

HDMI matrix 4x4 ports

Switch-Spliter transmits high definition video signal in several resolutions, up to 1080p, and digital audio signal on multiple channels from any of four HDMI sources. The four outputs give you the opportunity to transmit high definition audio and video signals to four screens, in any combination.
The real switching of the matrix in any combination of four to four allows maximum adaptability for integrated systems.
The need for disconnection and reconnection of sources to a screen provided with a single entry is eliminated.
It is compatible with HD-DVD players, TIVO systems, HT computers and satellite receivers with the possibility of connecting to an HDMI display.
Each source is always accessible for any display by selecting it with an IR remote control or by port RS232.
This product has many functionalities that give it higher performances. These include:
• Allows any HDMI screen to transmit from any source anytime • Allows any source to be displayed on multiple screens simultaneously • HDMI or DVI cables in HDMI are used to connect the inputs and exit of the matrix • Each screen entry can be switched with the IR remote control or by RS232
• Accept HDMI 1.3B • Accept the highest 1080p video resolution.
• Accept a bandwidth of 225MHz /2,25gbps per channel (6.75gbps on all channels)
• Accept a chromatic depth of 12 bits per channel (36 bits on all channels)
• accepts HDCP
• accepts uncompressed audio signal such as LPCM • Accept compressed audio signal, such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
