Positive-to-negative DC-DC converter 3.6–36V to -1.5–36V MC34063A

Product name:

Positive to negative voltage converter DC-DC modules 3.6V-36V reverse voltage mc34063a

description:

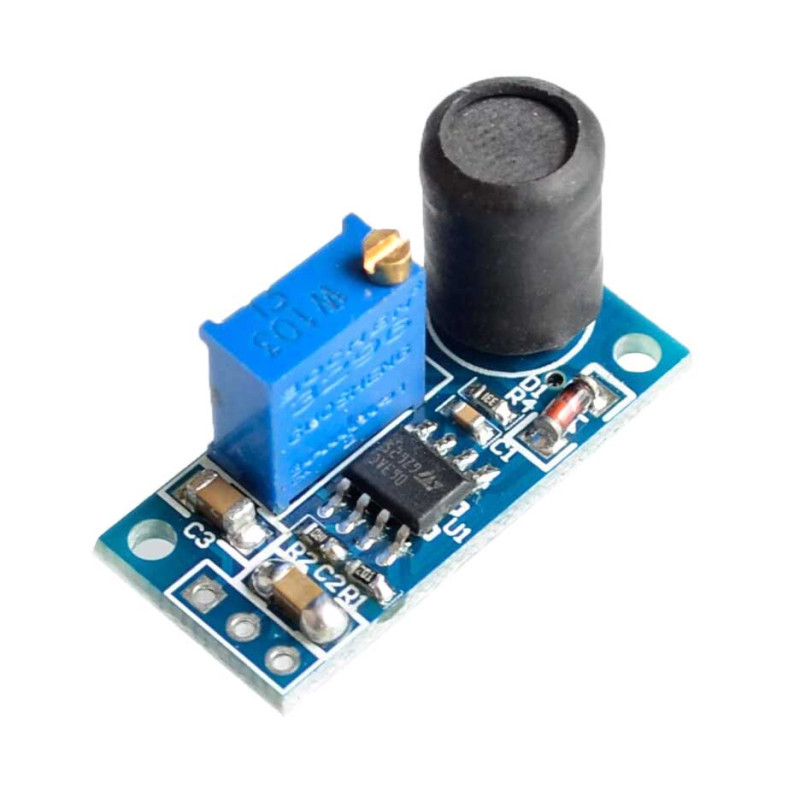

the reverse voltage module mc34063a_nv is a chip base on mc34063a for providing reverse, negative Voltage modules. Capable of Converting + 5V Voltage To -5V Voltage Output. The output Voltage can be Adjusted by Adjusting the Potentiometer according to the Requirements.

Technical parameters:

Input Voltage Range: 3.6V-36v.

Output Voltage Range: negative 1.5V to negative 36V. Output Voltage Regulation Characteristics; Load regular rates of less than 5%.

output court. The ic of the module is 1.5a internal switch, but for safety and heat considerations, it is recommended that the load power of this module is less than 0.5w. That is, the output negative 5V, the Load with 100ma, the proposed 50ma.

oter parameters:

Using Single-Chip Embedded Technology.

input position voltage, output negative volta.

easy to operate, you can adjust the output voltage through the potentiometer.

the module is Small, Easy to Carry and use a variety of occasions
