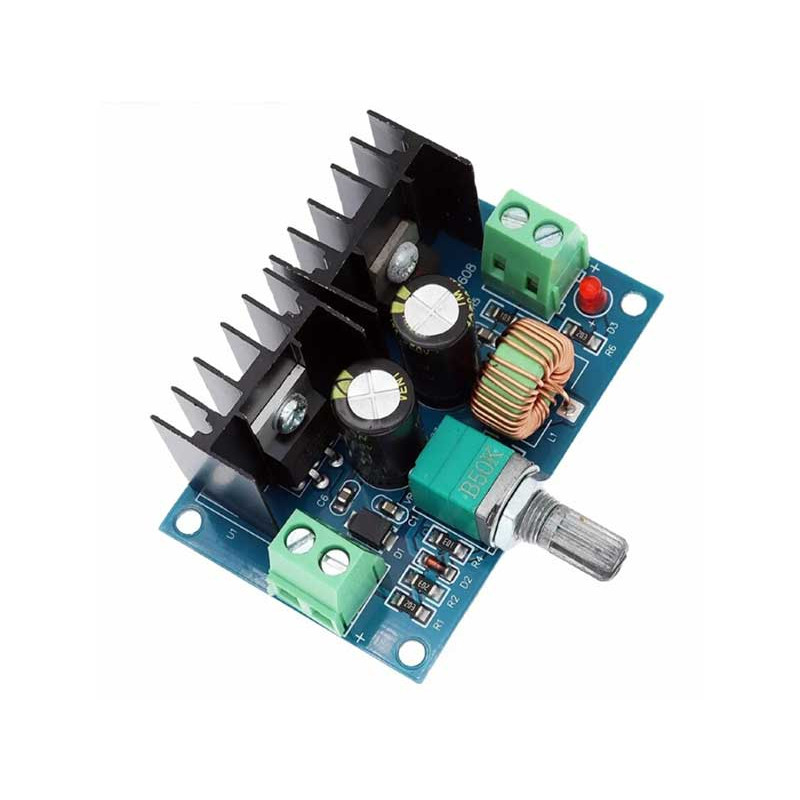

Step-down module DC-DC from 4-38V to 1.25-36V 8A 200W XH-M401

DC-DC step-down module from 4-38V to 1.25-36V, 8A, 200W

This product uses XL4016 switch-type voltage regulator chip with MBR10200 double rectifier.

Voltage regulation mode: PWM modulation

Input voltage: DC 4-40V

Output voltage: DC 1.25-36V

Maximum output current: 8A

Continuous output current: 5A

Maximum power: 200W

Conversion efficiency: 94%

Switching frequency: 180KHZ

Dimensions: 61*41*27mm

Protection mechanism:

overcurrent protection

overtemperature protection

short circuit protection

Please note:

When you reach the maximum output current of 8A, it is necessary to add a fan. For long-term use, approximately 5A is recommended.

Caution!

The product is intended for specialists and people passionate about electronics and does not include other instructions for assembly or use.

Specifications

General characteristics

Product type Regulator

Maximum working voltage 38 V

Minimum working voltage 4 V

Regulator type Step down

Power 200 W
