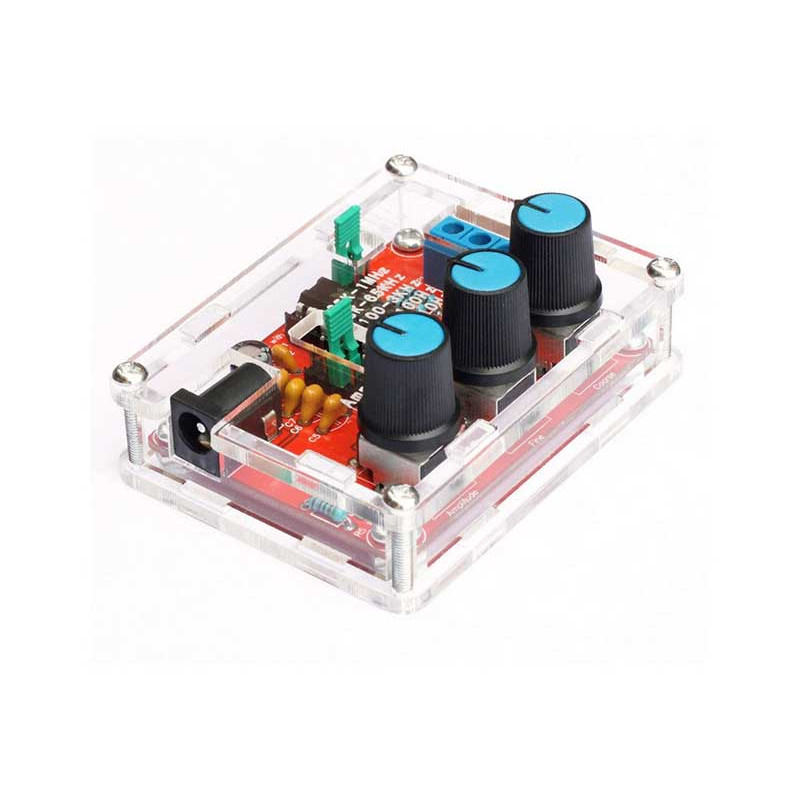

Function generator 1Hz-1MHz XR2206

the product is delivered unmounted, PCB and separate parts

description:

Voltage Supply: 9-12v DC input

Waveforms: Square, sine & triangle

impedance: 600 ohm + 10%

frequency: 1Hz - 1MHz

sine wave:

amplitude: 0 - 3v at 9v dc input

Distortion: Less Than 1% (at 1KHz)

flatness: +0.05db 1Hz - 100kHz

Square Wave:

amplitude: 8V (no log) at 9v dc input

rise time: less than 50ns (at 1khz)

Fall Time: Less Than 30ns (at 1khz)

Symmetry: Less Than 5% (at 1KHz)

triangle wave:

amplitude: 0 - 3v at 9v dc input

linearity: less than 1% (up to 100khz) 10ma
