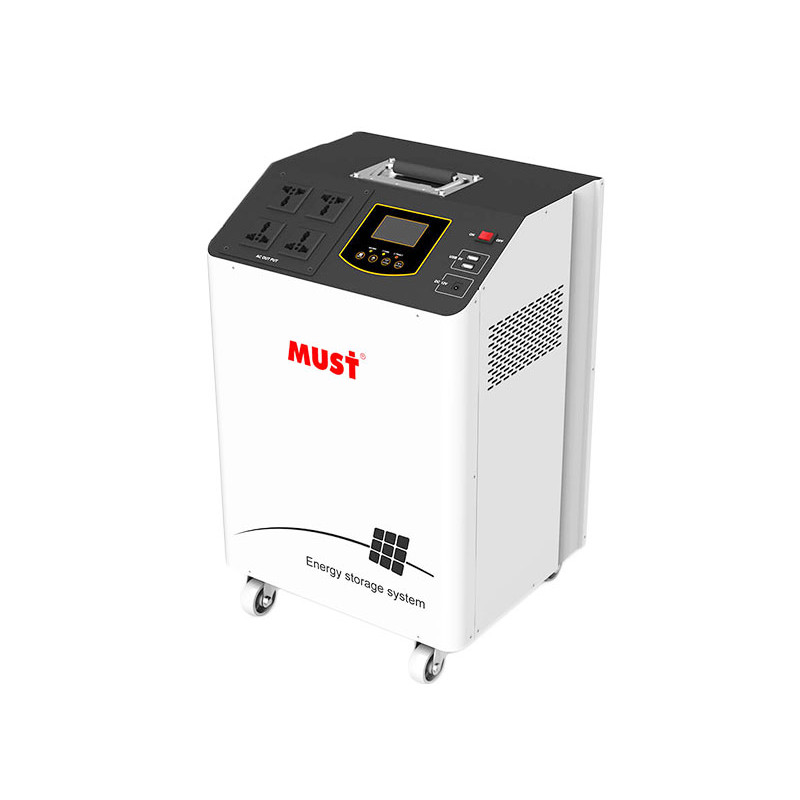

Off-grid solar inverter 3Kw 24-145V 60A 24-145V 3Kw Off-grid solar inverter with accumulator

battery features:

Nominal voltage: 6400Wh/25.6V

nominal capacity: 250Ah

operating temperature: 0 ~ 50 ° C

protection class: class I

degree of protection: ip 20

Inverter features:

Nominal power: 3000VA/3000W

output AC: 220VAC 50Hz 13A (max)

AC loading mode: Input: 220VAC 50Hz 17.7a (max)

solar load mode: nominal current: 60a system voltage: 24vdc

MPPT voltage range: 30-120vdc maximum.

solar voltage (voc): 145vdc maximum.

current load: 70a max.

pv current entry: 20a.
