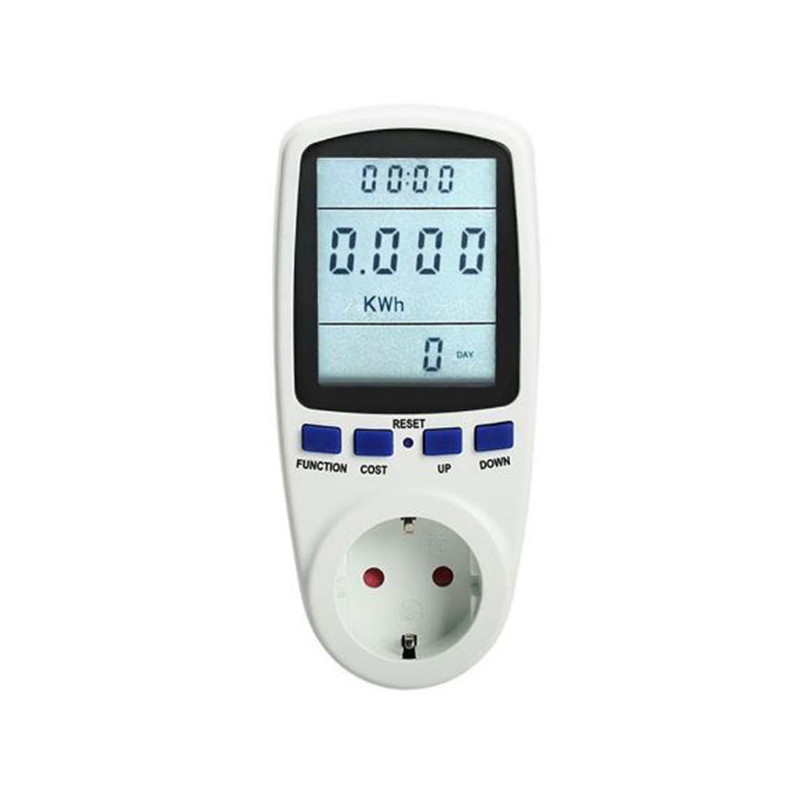

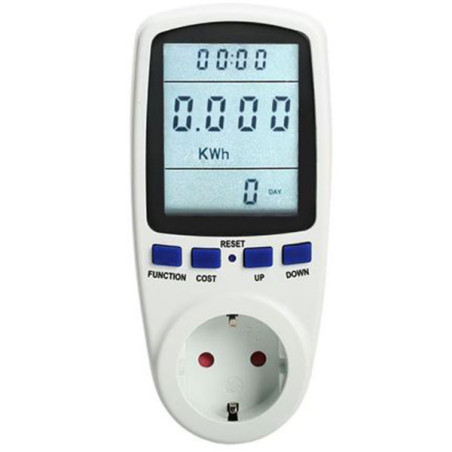

Plug with energy consumption meter digital display

Introduction:

The active energy meter EL -epM01 was designed for monitoring and measuring electric charges. It presents itself in the form of an effective solution in determining the costs.

The energy meter measurement range extends from 5W to 3680W (maximum 16A current). If the values fall below or exceed these limit values, no exact measurements can be performed. Also, the device can be overloaded and as a result destroyed.

Features:

Current time (24 hours), week, electric charge and consumption cost
total time, total energy used as well as increased energy costs.
Total registration time, total time and percentage
Dual energy consumption program before use:
Active Energy meter is only suitable for operating at 230V AC sources. It can only be connected to energy sources of 230V AC 50/60Hz.
the operation of the energy meter is allowed only in closed spaces and in dry environments. Do not use the energy meter in open spaces.
Always read the connected devices identification labels to check if their specifications correspond to those of the energy meter. After 15 minutes, the capacitors will have enough energy to start the LCD display. At this moment the current time and energy consumption can be regulated.

Note: Li-ion internal battery that serves to support LCD display needs at least 12 hours to completely charge. (AC)
Maximum Connected Current 3680W
Maximum current 16A rechargeable battery 2.6V, 40mAh, 4ma
absorbed power /power consumed through a connecting sheet /protective socket
working temperature +10â ° C to +40â ° C
energy display -999999.9 KWH
Maximum recording time 9999 hours
working temperature +5 ° C to +40 ° C
working humidity 80% below 31 ° C, from 31 ° C to 40 ° C this figure decreases up to 50%
degrees of protection IP20
degree of pollution 2
notes: Do not use two energy meters: the same time
