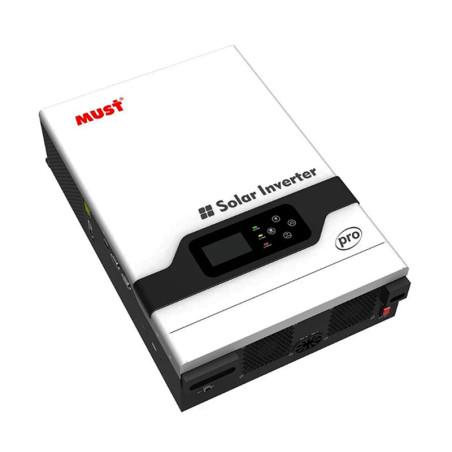

Invertor solar On/Off-grid 5,2Kw USB, WIFI, PH PRO Alien

Nominal Battery System Voltage               48VDC

INVERTER OUTPUT

Rated Power      5200VA / 5200W

Surge Power      10400W

Waveform          Pure sine wave

AC Voltage Regulation (Batt.Mode)         230VAC±5%(Setting)

Inverter Efficiency(Peak)              90%~93%

Transfer Time    10ms (UPS / VDE4105) 20ms (APL)

AC INPUT

Voltage 230VAC±5%

Selectable Voltage Range             170~280VAC(UPS) / 90~280VAC(APL)

Frequency Range             50Hz/60Hz(Auto sensing)

BATTERY

Normal voltage 48VDC

Floating Charge Voltage 54.8VDC

Overcharge Protection  60VDC

SOLAR CHARGER & AC CHARGER

Maximum PV Array Open Circuit Voltage               450VDC

Maximum PV Array Power           5000W

PV Array MPPT Voltage Range    150~430 VDC

Maximum Solar Charge Current 80A

Maximum AC Charge Current     60A

Maximum Charge Current            80A

MECHANICAL SPECIFICATIONS

Machine Dimensions (W*H*D)(mm)       330*488*119

Package Dimensions (W*H*D)(mm)        396*638*241

Net Weight(kg) 14

Gross Weight(kg) 16.4

OTHER

Humidity              5% to 95% Relative humidity (Non-condensing)

Operating Temperature -10? ~50?

Storage Temperature     -15? ~60?
