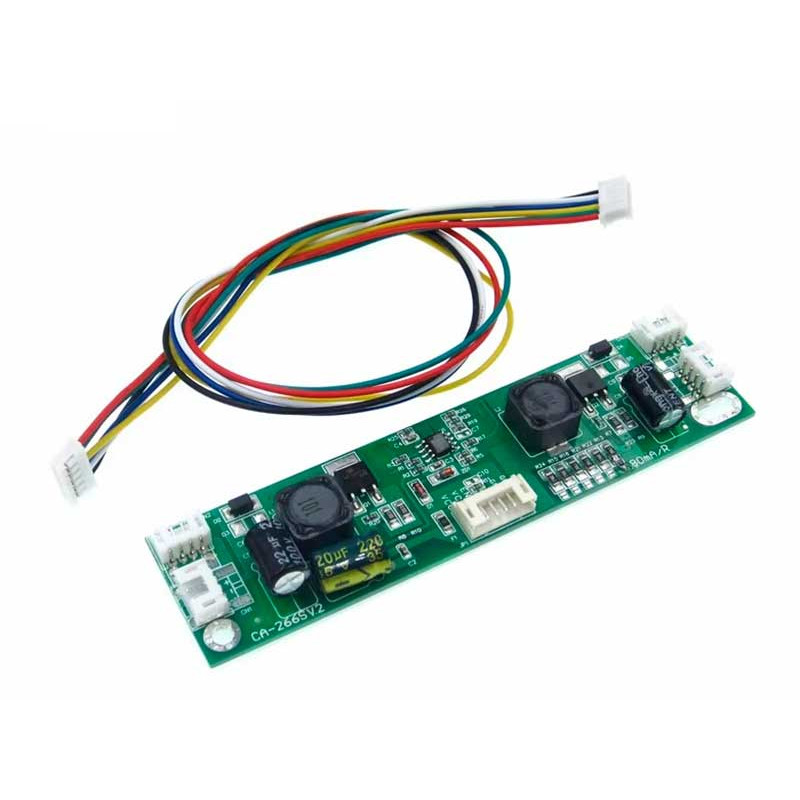

LED TV backlight driver module 35-65inch

parameters:

1. Power Supply Condition Input: Support 10-28V DC input

2. Output Voltage: Automatic Adaptation Below 88V (Minimum Limit for Input Voltage, No Depressurization)

3. Output Current: The Default 80ma. Increases The Current by Shorting the R22 R21 R18 R15 R24 Resistor. EACH RESISTOR 80MA. Highest 480ma.

4. Suitable for light bar: Large Size 32inch -65 inch (Maxim Voltage 88V)

5. Input Interface Definition: 1: Power Supply 2: Power Supply 3: ENA Switch Control 4: Brightness Adjustment Signal (Voltage Dimming) 5: Ground wire

6. Output Interface Definition: It is a Four (++-) parallel interface. Definitions has all the Same.

function:

1. With protection.

2. Output Voltage: Below 88V Automatic.

3. It is convenient to change the current. There has 6 of 1206 Resistors on the Motherboard. One Resistor represents 80MA, and the Highest 6 Resistance Fully Connected to 480ma.

4. The Depault is Only Connected 1 R13 Resistors, The Output Current is 80MA. It won't Burn the lamp strip. If Its Too Dark, Blinking, or Flashing, PLEASE TRY TO INCREAS THE CURRENT.

5. No Load Will Not Burn the Board (in the house of no dam or lamp bar, the output voltage will to the input voltage, or the load voltage is high than 88v that will also reduce to the input voltage value).
