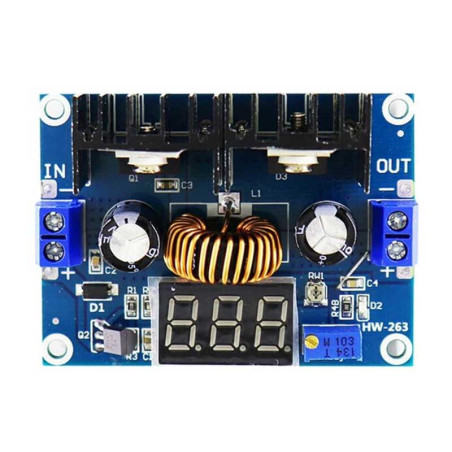

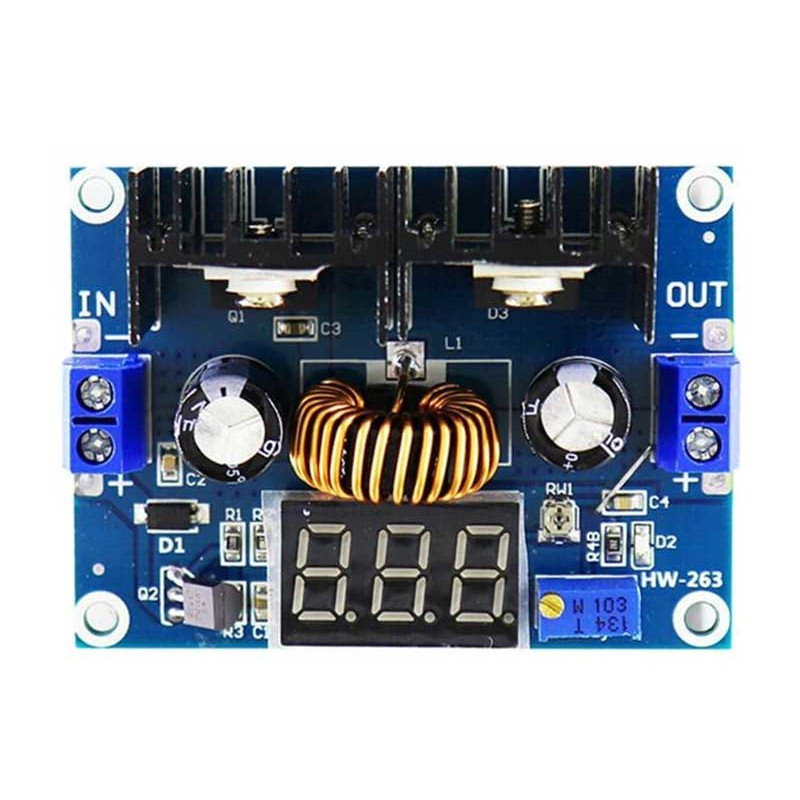

Voltage regulator module DC 4-40V 8A

Features

Adjustment method: first correct the input power (between 4-40V), then the multimeter to monitor the output voltage and adjust the potentiometer (usually clockwise, boost turn, counterclockwise),

Input: IN+ positive input IN- negative input

Output: OUT+ positive output OUT- negative output

Static power consumption is only about 6mA.

Connection: Soldering, plus the pin can be soldered directly after the PCB.

Short circuit protection: current limiting, thermal protection, self-recovery

Non-isolated buck-switching regulator (BUCK)

Short circuit protection: Current limiting, self-recovery

Potentiometer adjustment direction is clockwise (increase) and counter-clockwise (decrease)

Asynchronous rectification

Specifications

Input Voltage (V): 4 to 40VDC

Output voltage (V): 1.25 to 36VDC

Maximum current (A): 8

Maximum power (W): 200

Efficiency: 94%

Switch frequency (KHz): 180

Length (mm): 63

Width (mm): 46

Height (mm): 25

Weight (gm): 45
